Affordable and easy to use, the Element 2 console provides generous hands-on control for smaller rigs. Element streamlines your show file with a single cue list while allowing access to a wealth of advanced control features below the surface. Ideal for amateur and professional operators alike, Element 2 provides the experience of a classic fader-intensive lighting desk combined with the powerful Eos engine – including award-winning color tools and the Augment3d 3D-programming and visualization environment.
Hardware/Interfaces

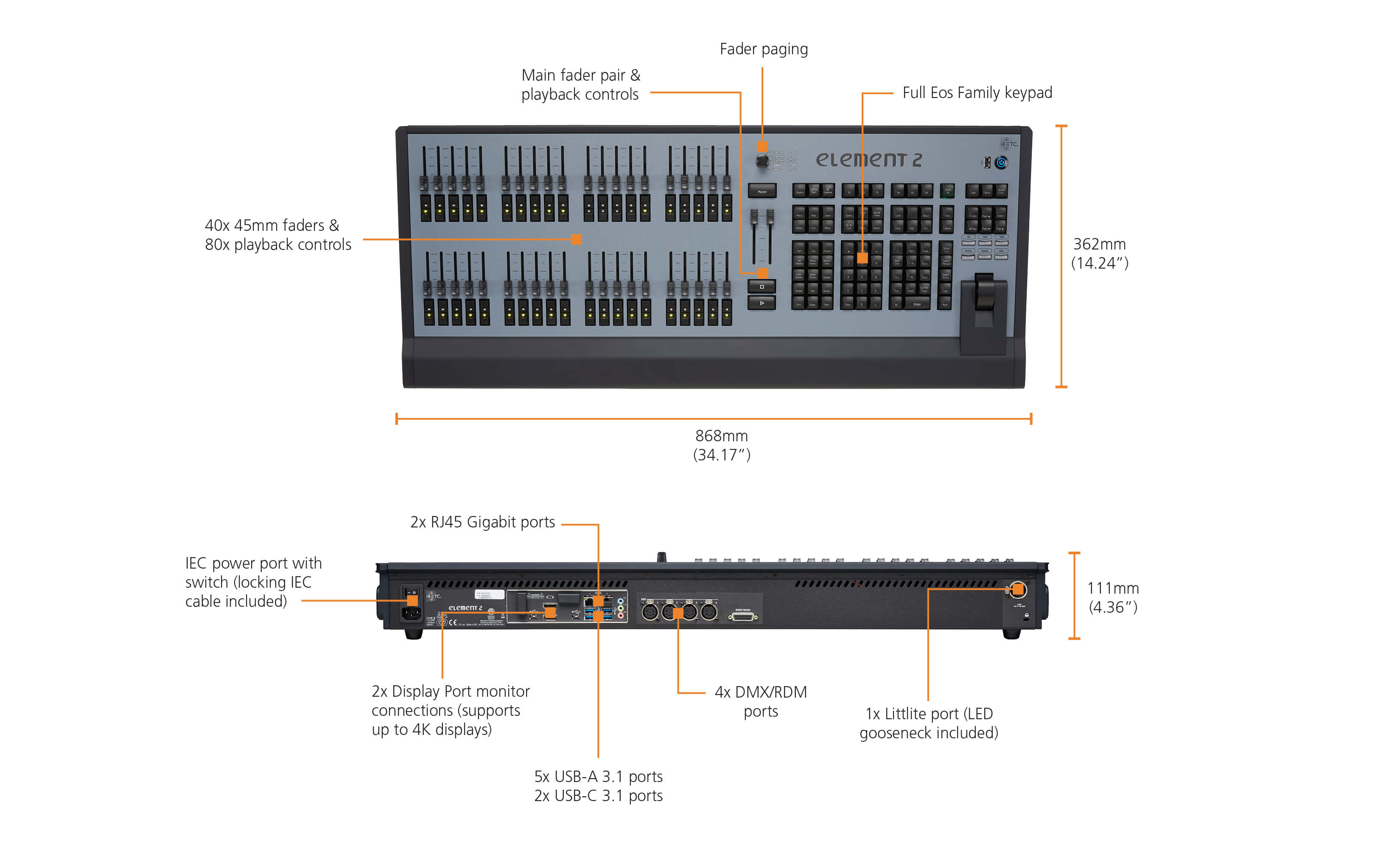

Element 2 Dimensions*
MODEL
HEIGHT
WIDTH
DEPTH
inches
mm
inches
mm
inches
mm
Element 2
4.36
111
34.17
868
14.24
362
Element 2 in shipping container
9.50
241
40.25
1022
19.50
495
Element 2 in Flight Case
8.34
212
45.12
1146
19.45
494
Control
Easy hands-on control
1K or 6K output
40x 45mm faders for extensive hands-on control
Supports up to two multi-touch external monitors
System Capacity
1,024 or 6,144 Outputs
32,768 Control Channels (mapped to any number from 1 to 99,999)
100,000 Cues
One Cue List
999 Submasters
100 Fader Pages
4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
10,000 Presets (all palette)
10,000 Groups
10,000 Effects (relative, absolute or step)
99,999 Macros
10,000 Snapshots
10,000 Curves
10,000 Color Paths
99 discrete users
Partitioned control
Show import from Obsession, Express™, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
Magic Sheets suite for customized user programming and displays
Virtual Media Server function for pixel-mapping effects, images, and animations
Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian, and Chinese (Simplified and Traditional)
Hardware/Interfaces
Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
Forty 45mm standard faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Dedicated fader paging knob, with backlit selection labels
Main Playback with two 45mm standard faders
On-Demand moving light and LED virtual encoders on connected display monitor
Dedicated high-resolution intensity level wheel
Eos keypad
Included USB keyboard
Solid-state hard drive
IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
