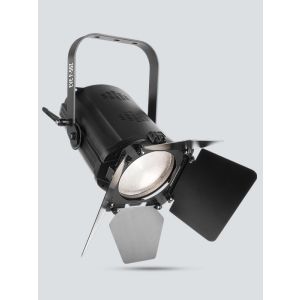

EVE F-50Z

EVE F-50Z is an LED Fresnel fixture that shines a soft-edged, warm white spot and features D-Fi™ USB compatibility for wireless master/slave or DMX control. It’s designed for mobile and installation applications. Manual zoom gives you the flexibility to project from any distance. You can operate EVE F-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.

Highlights

• Stylish, compact Fresnel perfect for small to medium stages and theatres

• Warm white LED with high CRI show the true natural colors of scenery and cast

• Flexibility to project from any distance using the manual zoom

• D-Fi™ USB compatibility for wireless Master/Slave or DMX control

• powerCON®-compatible power input/output connections for power linking

• Included Barn Doors keeps light where you need it

• Included Gel Frame adds a splash of color to any scene

Specifications

• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Beam Angle: (Narrow): 17°
  (Wide): 50°
• Illuminance: (17°): 4,780 lux @ 2 m
  (50°): 998 lux @ 2 m
  (17°): 853 lux @ 5 m
  (50°): 156 lux @ 5 m
• Power Linking: 16 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 60 W, .5 A @ 120 V, 60 Hz
  58 W, .3 A @ 230 V, 50 Hz
• Zoom Angle: (manual): 17° to 50°
• Weight: 8.41 lb (3.9 kg)
• Size: 11.1 x 8.3 x 13 in (281 x 212 x 328 mm)
• Approvals: CE, MET
• Accessory Holder/Gel Frame Size: 6.25 in (158 mm)
• Color Temperature: 3500 K
• CRI: 92
• Bracket Mounting Hole: M12
• Optional Controllers: D-Fi USB
