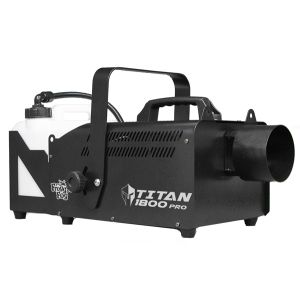

• 1800W Fog Machine
• Quick Ready Fog Technology (QRFT) - Less than 10 seconds after full cycle and it is ready to fog
• Oversized Heater Core for increased run times
• Instant Stop Technology (IST)
• Pulls fluid out of core to reduce spitting and give precise fog output
• IP65 Power Connection and Button
• Touch Screen LCD
• Built-in Wireless Control
• Durable 5 Liter Fluid Tank with Aluminum Cap

Specifications

Length: 22.7 in. Box: 27 in.

Width: 12 in. Box: 14.4 in.

Height: 11.5 in. Box: 13.6 in.

Net Weight: 31 lbs Gross Weight: 36.4

Fluid consumption (100%): 160 ml/min

Maximum operating time, maximum output: 27.7 min

Ready time: 4 Min initial, 10 Sec. Reheat

Control options: DMX, LCD Control Panel

Fog Variable output control, 0-100%

DMX channels: 1

External fluid control: Fluid sensing

Housing: Steel and aluminum

Color: Black

Fluid pump: Dual oscillating piston, high pressure

Fluid reservoir: 5L drop-in reservoir

Hanging bracket: Integrated yoke with safety attachment point Installation

Mounting: Standing or hanging

Orientation: Up to +/-40° from horizontal

pMounting: Standing or hanging

pOrientation: Up to +/-40° from horizontal

AC Power: Seetronic Powerkon IP65

DMX, link mode in/out: 3 and 5-pin locking XLR

US Model: AC power: 120 V, 60 Hz

Main fuse: 15A, 250 V

Typical power and current: 1800 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Downloads & Manuals

• Spec Sheet
