ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

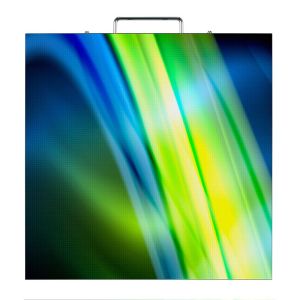

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS3 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
SPECIFICATIONS:
Pixel Pitch: 3.91mm (0.15”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128x128; 65536 per square meter
Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
Module Quantity: 4
Weight: 17 lbs. / 7.7kg.
FEATURES:
Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown
Front and rear serviceable: 4 easy to replace video modules on each panel
Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
