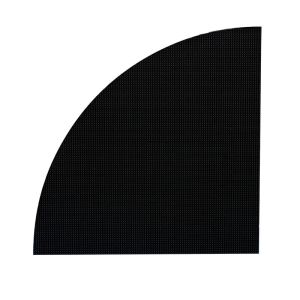

Design Series Video Panels - DS4 top left (TL) 4.8mm quarter circular LED video panel

Specifications

• Quarter circle shaped LED video panel (TL - Top Left)
• Pixel Pitch: 4.8mm (0.19”)
• LED Configuration: 3-in-1 SMD2020 LED
• Pixel Density: 104x104; 43,264 per square meter
• Dimensions (LxHxW): 20” x 20” x 3” / 508x76x508mm
• Weight: 14 lbs. / 6.35 kg.

RATINGS:

• Surface Flatness: Gaps±0.3mm

OPTICAL RATINGS:

• Brightness: 1200 NITS
• View Angle: Horizontal 160°/Vertical 120°
• Distance: 12.5ft. (3.8m)
• Gray Scale / Display Color: 14Bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 157.5W/per panel
• Average Power Consumption: 52.5W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/13 Duty
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -20° + 45° / Celsius: 10-90% (No Condensation)
• Operating Life / MTBF: 80,000 Hours / 10,000 Hours
• Out of Control Rate: <0.003%
• Listings: CE, FCC, ETL

Downloads & Manuals

• Spec Sheet
