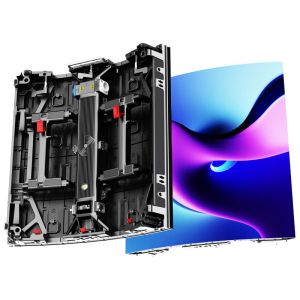

The EVS3 Flex45 LED Video panel features a 3.91mm pixel pitch, boasting a 3-in-1 RGB SMD2121 LED configuration and the ability to flex up to a 45° concave or convex shape. Its design includes four individual modules and rear serviceability. Conveniently, up to 8 EVS3 Flex45 panels can snugly fit within the EVSF45FC flight case. Additionally, the FLEX45RB rigging bar enables the hanging of up to 20 EVS3 Flex45 panels vertically.
Specifications:
Main Features:
Pixel Pitch: 3.91mm (0.15”)
LED: Kinglight Copper, 3-in-1 SMD 2121
Drive IC: ICN2153AP
Pixel Density: 65536 per square meter
Size: 19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
Module Quantity: 4
Module Resolution: 128x32 pixels
Panel Resolution: 128x128 pixels
Weight: 15.6 lbs. / 7.06kg
Extended Features:
Memory on Module (MOM): Enhanced functionality for seamless operation
Corner Protectors: Safeguards corners during transport, setup, and teardown
Rear Serviceable: Easily replaceable video modules ensure continuous performance
Retractable easy transport handle
Power Supply:
Operation Power: 100~240V 50-60Hz for global compatibility.
Max. Power Consumption: 120W/per panel, conserving energy.
Ave. Power Consumption: 48W/per panel for efficient operation.
Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
Frame Update Frequency: 50-75Hz for smooth playback.
