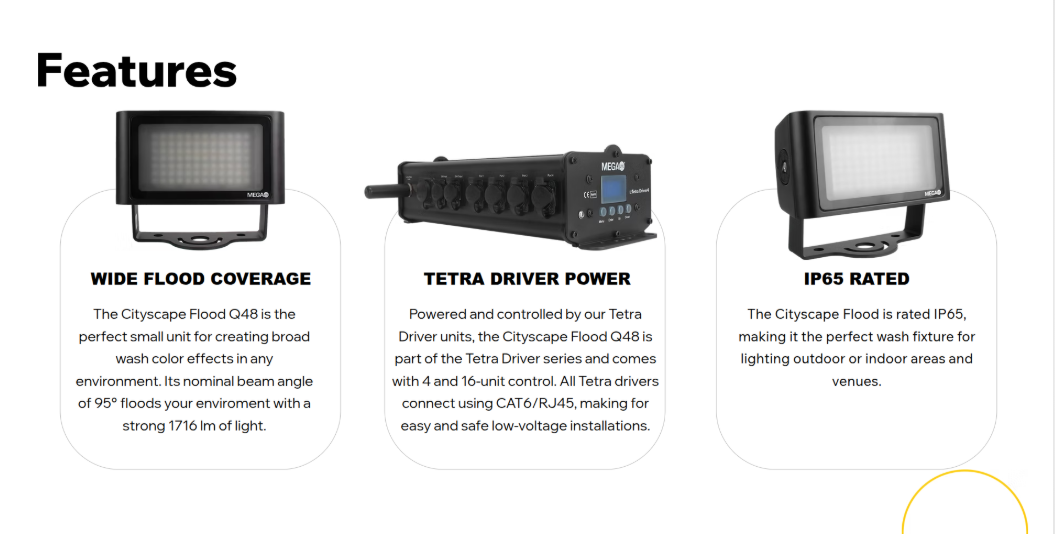

The Cityscape Flood Q48 is a compact, modern-looking IP65 wash luminaire with a wide 95° beam angle that can illuminate indoor or outdoor applications. Powered by our Tetra Driver series, it allows the Tetra driver to live near a power source and provide voltage to the units using our 5-pin XLR Ip-rated connectors and cables that can control the unit as far away as 100" from the driver, eliminating the expensive copper electrical outlet installations.
The Tetra Diver four can drive four units using IP connections and is ideal for outdoor installation. It can also be used inside as a compact wash, using an array of drivers and connection converts. Allowing for use with cat6/RJ45 cabling for color-washing surfaces and making colors come alive.
What's Included
1pc Cityscape Flood Q48 fixture
1pc Strain Relief Washer Adapter
1pc Strain Relief 1/2 NTP thread
1pc User Manual
Specs
Mechanical specifications:
Housing: Die-Cast aluminum, AB47100
IP rating: IP65
Power connection: Seetronic SCWM5-B-67
Cable length: 48"
Lens angle: 95°
Fastening system: Mounting Yoke
Dimensions:
Fixture size: 8.75" x 3.5" x 6.4"
Fixture weight: 5 lb
Packaged size: 11.25" x 9" x 6.75"
Packaged weight: 6 lb
Electrical specifications:
Light source: 84 x 0.5 W RGBWW LEDs
Color temperature: 3035 K
CRI (warm white): 83
Lumen output: 1,716
Power supply: 24 V DC
Power connection: 48 W
Control system:
Control Protocol: DMX 512 controlled via Tetra Driver
