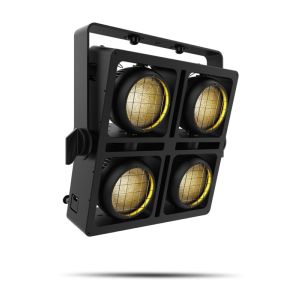

STRIKE Array 4 is an electrifying outdoor-ready audience blinder with four high-power warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 4 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder – giving you a streamlined truss mounting process.

Specifications

Optical

• Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
• Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy
• Color Temperature (at full): 2770 K
• CRI: 93.2
• TLCI: 91
• Beam Angle: 61.5°
• Field Angle: 100.5°
• Illuminance (total): 684 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Strobe Rate: 0 to 25 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)
• Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)
• Weight: 28.7 lb (13 kg)
• Weight (shipping weight): 33.1 lb (15 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, or 10

What's Included

• STRIKE Array 4
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware
• Warranty Card
• Quick Reference Guide or User Manual
