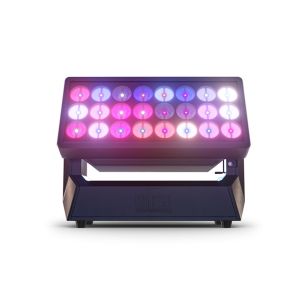

Our newest STRIKE design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to our tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.

Specifications

Optical

• Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
• Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
• Beam Angle (Combine): 9.9°
• Beam Angle (Dot): 105.7°
• Beam Angle (Cell): 9.9°
• Beam Angle (w/E-Frost Combine): 50.3°
• Beam Angle (w/E-Frost Dot): 103.1°
• Beam Angle (w/E-Frost Cell): 46.8°
• Field Angle (Combine): 17.6°
• Field Angle (Top Plate): 153.1°
• Field Angle (Cell): 17.5°
• Field Angle (w/E-Frost Combine): 125°
• Field Angle (w/E-Frost Dot): 155.6°
• Field Angle (w/E-Frost Cell): 117.2°
• Lumens (Combine): 19,589
• Lumens (Dot): 1,912
• Lumens (Cell): 17,127
• Lumens (w/E-Frost Combine): 13,406
• Lumens (w/E-Frost Dot): 1,633
• Lumens (w/E-Frost Cell): 15,769
• Illuminance (Combine): 16,779 lux @ 5 m
• Illuminance (Dot): 29 lux @ 5 m
• Illuminance (Cell): 16,789 lux @ 5 m
• Illuminance (w/E-Frost Combine): 539 lux @ 5 m
• Illuminance (w/E-Frost Dot): 26 lux @ 5 m
• Illuminance (w/E-Frost Cell): 536 lux @ 5 m
• Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz

Dynamic Effects

• Tilt: 180°
• Tilt Ranges: 0° to 180°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
• Weight: 36 lb (16.3 kg)
• Exterior Color: Black
• Housing Material: AZ91D Magnesium diecast

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, RDM, sACN
• DMX, ArtNet, and sACN Channels single mode 29,222,314
• DMX, ArtNet, and sACN Channels Dual mode Movement: 30
• DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
• ArtNet and sACN Channels Multi-Layer Control Movement: 30
• ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
• ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144

What's Included

• STRIKE V
• Seetronic Powerkon IP65 power cord
• Omega bracket
• Stealth filter

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• IP Rated EtherCon Cables
• UPLOAD 03 software uploader
