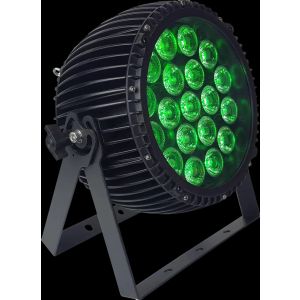

The TOURnado™ WIMAX EXA offers super bright RGBAW+UV color mixing from 19x 15W 7-in-1 LEDs with advanced 25° optics. It is also IP65 outdoor rated, and sports a larger natural convection cooled cast aluminum housing than previous models. Its tempered glass lens is watertight, and the back has outdoor rated 3-pin XLR data and AC power input/output connectors with rubber seals.

All TOURnado™ WIMAX fixtures come equipped with a built-in W-DMX™ receiver for ultra-stable wireless capability (500+ meters), plus an easy-to-use 4-button OLED control panel which gives users total control of master/slave settings, 5 auto modes, custom programs (up to 3* 20 scene programs), fade, strobe, manual color adjustments, multiple user-selectable 32-bit dimming modes and more.

Tech Specs

The Rundown

• Color mixing via 19x 15W RGBAW+UV 6-in-1 LEDs
• IP65 rated outdoor LED fixture
• OLED control menu with 4x touch sensitive buttonss

Optical

• Light Source: 19* high output 15-watt RGBAW+UV LEDs
• Beam Angle 25°
• Flicker-free LED's
• Luminous Intensity: 4,207 Lux (390.9 fc) @ 25 | 1,009 Lux (93.8 fc) @ 5m

Control

• Protocol: USITT DMX-512
• 6/8/12-channel DMX modes
• Standalone, master/slave, DMX modes
• IP65 Seetronic 3-pin DMX input/output
• 4-button OLED control menu display

Power & Current

• 100-264VAC, 47-63 Hz
• Power Consumption: 149W, 1.28A, PF: .99

Dimensions

• 13.3" x 6.7" x 14"
• 17lbs

Warranty

• 2 Year - Extendable

Certifications

• IP65, ETL, RoHS, CE

Downloads & Manuals

• Spec Sheet
• Manual
