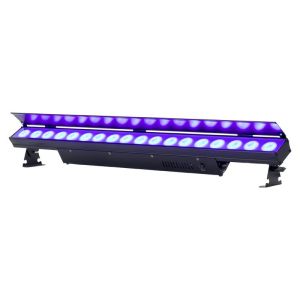

The Ultra LB18 from ADJ is a powerful and versatile linear LED wash lighting fixture, designed for permanent installation or temporary event use at indoor locations. It features 18 x 10-Watt 5-in-1 color mixing LEDs (red, green, blue, amber & lime) and a beam angle of 17 x 40-degrees. The inclusion of a lime LED chip not only increases the palette of colors available from the fixture, but also boosts the CRI of its white light output. It is supplied with brackets that can be used to set the fixture directly on the ground or to attach a clamp for truss mounting and the ends are also magnetic to allow adjacent fixtures to be quickly and easily aligned.

SPECIFICATIONS:

Control:

• Linear Color Temperature Control (2,300K to 9,900K)
• Digital Display with 4-button menu
• 11 DMX Channel Modes: 5, 8, 10, 13, 16, 30, 33, 38, 41, 60 & 71 Channels
• 6 Groups x3 RGBAL LED pixels controllable via DMX in 30, 33, 38, 41, 60 & 71 channel modes
• 6 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL Manual, Static Color and DMX-512 Mode
• Flicker Free operation (No flickering on camera)
• Selectable refresh rates from 2.88KHz to 25kHz
• 64 built-in Color Macros, including 15 white color temperature presets
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
• Built-In Microphone for sound trigger mode
• LED pulse and strobe effect
• Electronic Dimming: 0-100

Features:

• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL color mixing
• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet (10 meters)
• Glare shield that blocks the LEDs from glare/view and protects LEDs during transport
• USB Service Port
