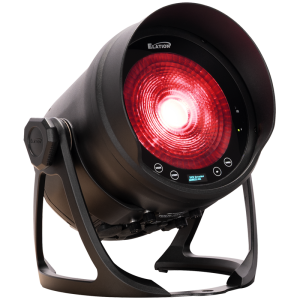

Introducing the VOLT+ PAR L, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a sleek form factor.

Specifications

SOURCE

• 60W RGBLA+ UV LED
• 30,000 Hour Average LED Life*

PHOTOMETRIC DATA

• Total Lumen Output:
• 3,600 (Integrating Sphere)
• CRI- 90.9
• TLCI- 80
• Beam Angle: 15°
• Field Angle: 28°

COLOR

• RGBLA+ UV Color Array
• CMY Emulation
• Variable CCT 2400K - 8500K
• Virtual Gel Swatch Book

CONTROL / CONNECTIONS

• 8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
• 4 Button Control Panel, LED Display
• Aria x2 Wireless Device Management
• IR Remote
• NFC Configuration
• 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

• Length: 8.11" (206 mm)
• Width: 8.11" (206mm)
• Vertical Height (with Snoot): 9.28" (235.7mm)
• Vertical Height (without Snoot): 7.08" (180mm)
• Weight: 15.1lbs (6.85kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 150W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 238.7

INCLUDED ITEMS

• Diffusion Filter
• Concentric Ring
• Removable Half Snoot

APPROVALS / RATINGS

• CE | cETLus | IP65 | FCC | UKCA

Downloads & Manuals

• Spec Sheet
• User Manual
