4-channel Wireless UHF Handheld Microphone System with Intelligent Frequency Autoscan with IR synchronization.

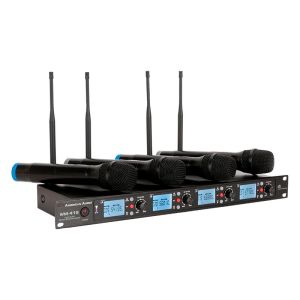

The American Audio WM-419 is a 4-channel UHF wireless microphone system that includes four wireless microphones, a wireless receiver with individual volume control and XLR audio output for each microphone, batteries and four mic clips. The WM-419 features American Audio?s Intelligent frequency Autoscan with IR synchronization with 50 channels per receiver (200 total), as well as, 16-Bit Pilot Technology to assist with eliminating frequency interface.
The WM-219 is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10-hour battery life.
FEATURES:
4 Channel Wireless Handheld Mic System
Intelligent Frequency Autoscan with IR Synchronization
Includes 4 Handheld MIC Transmitters with OLED Screen and 4 Mic Clips
50 Channels Available per Receiver (200 total)
16-Bit Pilot Technology to assist with eliminating frequency interference
4 Removable Antennas
4 XLR Balanced Outputs + 1 AF Mixed Out (1/4 Jack)
Batteries Included
WHAT?S INSIDE:
4x Hand Held Wireless Microphones (AA batteries included)
1x 4-Channel UHF Wireless Receiver
4x Detachable UHF Antennas
1x Power Supply
1x ?? to ?? stereo cable
4x Microphone clips
PERFORMANCE:
Wireless Range: 300 ft. (90M) line of site*
Battery life with full charge: 6-10 hours
Operating Frequency Range: UHF 540-590MHz
Dynamic Range: >98dB
Total Harmonic Distortion: <1%
Frequency Response: 50HZ ~ 14KHz 3dB
Signal to Noise Ratio: >85dB
Audio Output Level: 0-300mV (Balanced: 0-2V)
Transmitting Power: +10sBM
*Actual wireless range will depend on RF signal absorption and interference DIMENSIONS / WEIGHT:
Receiver Dimensions (LxWxH): 18.9?x5.9?x1.7? / 480x155x45mm (one rack mount unit)
