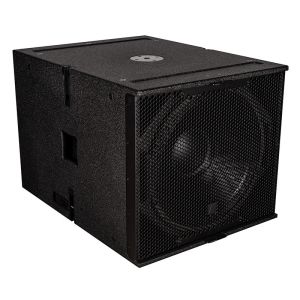

The Avante Audio Imperio Pro IMP118 is a professional active subwoofer engineered for large events and pairs nicely with the Avante Imperio Pro IMP205 mini line array. With its powerful 18-inch high-power woofer, 4-inch voice coil and bass-reflex system design, this subwoofer delivers an exceptional frequency response of 32 Hz-130 Hz (-10dB) and 38 Hz-130 Hz (-3dB) that ensures deep-powerful bass that you can feel!

Specifications:

• System Type: Active DSP Controlled 18-inch Sub, Bass-Reflex, Touring Subwoofer
• DSP Features: Delay, Crossover, Cardioid
• Frequency Response: 32 Hz-130 Hz (-10dB) 38 Hz-130 (-3 dB)
• Component: 18-inch High-power. Voice Coil 4-Inch (100mm)
• Coverage pattern: Selectable cardioid and end-fire settings.
• Crossover Frequency: Selectable: 60 Hz, 70, Hz, 80 Hz, 90 Hz, 100 Hz, 120 Hz. Slope- LR 24dB per octave
• Power: Active class-D amplifier, 1800-watts RMS, 3600-watts Peak
• Input Gain: Variable
• Maximum SPL: 136 dB Peak
• Enclosure: Premium Birch plywood
• Suspension/Mounting: 20 captiv- nut fly points (M10), Pole Mount (M20)
• Transport: 2 recessed handles, bottom nylon skids, rear rubber feet, interlocking stacking hardware
• Finish: Black Polyuera
• Grille: Black powder-coated steel
• Connectors: Signal In/Thru: XLRF/ XLRM
• AC IN/OUT: IP65-Rated locking connector In/Thru. 100~240VAC 50/60Hz
• Protective rain cover on rear panel to protect sockets and DSP display
• Dimensions: 20.75” H x 22.6” W x 29 x 30” D / (527mm H x 574mm W x 762mm D)
• Net Weight: 101 LBS. (45.8 KG)
• Approvals: CD FCC, CETLus (Control #3069848)
• Accessories: Imperio Pro IMC118 interlocking caster board, protective cover and speaker pole

Downloads & Manuals

• Avante_Imperio_Pro_IMP118_-_Frequency_Charts
• Avante_Imperio_Pro_IMP118_-_User_Manual
• AVANTE_IMPERIO_PRO_IMP118_-_DIMENSIONS
• imperio-pro-imp118-cutsheet2
